hospital reflector ceiling medical surgical equipment

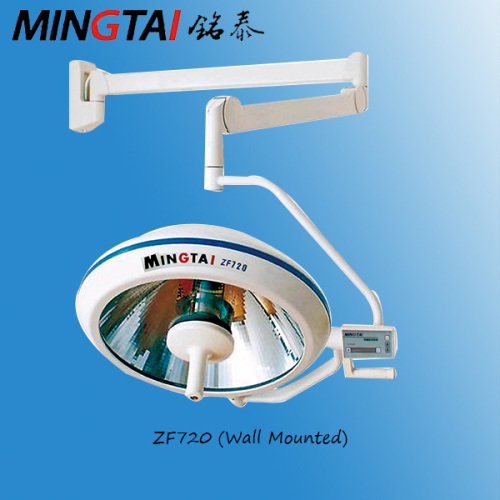

Technical parameters: ZF720
Illuminance (Lux) 30,000-165,000
Color temp (Kelvin) 4300 ±50
Colorrenderingindex(Ra) 96
Diameter of spot(mm)
100-360
Illumination depth(mm) ≥1200
Light Note depth L1+L2
≥1500
Ee/Ec (mW/ m2 lux)   3.8
Light adjusting steps
16-steps continuous light adjustment
Temp rise(°C) (surgical field) ≤7
Temp rise(°C) ( surgeon's head) ≤2
Automatic switching Automatic switching
Power ~220V/50HZ
Input power (W) 200
Bulb specification
halogen(150/150)
Bulb lifetime   over 1500h


Configuration:
Germany balance arm suspension system
Germany ORSAM bulb and lamp socket
Taiwan brand high quality power system
Imported aluminium sheet retroreflector, without coating film
Imported material high level light filter, PC glass
Humanized lamp cap, ABS handle


Feature
1.
Full close streamline lamp body design completely meets the demand of the sterilization and high standard of laminar flow purification in operation room.
2.
Offering soft start up unit, extending the serve life of the bulb effectively. Adopting the imported long life halide-tungsten bulb, the bulb life can be up to 1500 hours
3.
Use six prism filter technology,thermal radiation separate efficiency ≥ 99%,optical radiation ≤3.8w/m²lux,heat-protecting glass have cupric ion with high efficient filtering
5.
Reflection principle: more mirror surface and whole reflecting mirror,adopt electrode oxidation technology, provide natural illumination,solve the deplation and aging phenomenon
7.
With spare bulb automatic switch function, when the main bulb was burnout, spare lamp will be lighted within 0.1 Second. Imported lamp and lamp-socket .
9.
Adopt preventing electromagnetic wave interference,avoid disturbing other instruments
