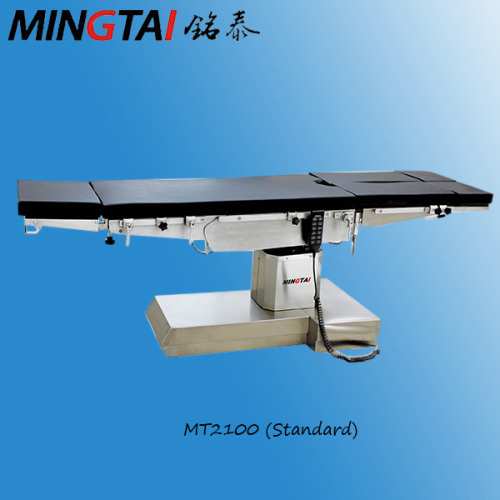

operating table with different accessories MT2100 (standard model)


MT2100 multi-function electric operation table, implanted progressive design philosophy and module, Longitudinal translation, double line position control table board, perspective by X-ray, extensibility and compatible normal accessories ensure the table's multi-function and flexibility; adopt imported motor and electrical components ensured the safety and stability of operation, such rich function operation platform can make surgery work effectively, it will be an ideal option for you.


Technical Parameters: Length 2100±50mm
Width 555mm
Height adjust scope (750-1000) ± 50mm
Customized lowest height 600mm
Customized table rising height between 200-450mm
Forward and backward tilt ≥32°
Table longitudinal scope 400±50mm
Left/right tilt ≥22°
Head board up ≥90°
Head board down ≥90°
Kidney elevator ≥130mm
Leg board down ≥90°
Leg evagination ≥90°
Back board up ≥80°
Back board down ≥40°
Power AC 220V 50Hz
Input power 500VA


Feature:

1.
Electric motor driving system: imported the Danish LINAK brand motor, low noise, smooth table motion, lifting and rising, forward and backward, left ward and rightward and the back plane are all controlled by system, manual head plate and leg plate, easy and convenient for operate.

2.
6 electric motor, 2 of them rise the flanks back board. High performance charged battery can work ≥50 times to make sure the operation table can work without power source.

 3,
The whole bed is made of high quality SUS304# stainless steel, super thick≥4mm (not stainless steel cover). The whole surgery bed, cover and accessories are all made of high-quality nickel chromium alloy stainless steel, not rusting within 15 years, excellent sealing, polishing surface treatment, impact resistance, prevent scratch resistance, wear resistance, disinfection, easy to clean, fully meeting disinfection after operation

 4,
Fairily "T" shape base design supple excellent shockresistance and stability, easy for clear and disinfection. Six sections board design: head board, back board, built-in kidney elevator, leg board and pedal board.

 5,
Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable.

 6,
Mattress: the memory mattress, thickness is 70mm, effectively relieve patients pressure point, prevent postoperative bedsore occurred; mattress material is conformed with the safety standard, the surface is antibacterial, easy to clean, meeting the operating room disinfection requirements.

7,
With non-slip floor side rail safety design to prevent the attachment falling, in case of injury

 8,
Longitudinal movement function: imported slideway system makes it easier for longitudinal movement, the max longitudinal scope is 350mm, and it also can guarantee enough space under the table bed for C-arm's X-ray transillumination and other special surgery
